Demolition & Scrap Shears
KS Series - Double Cylinders
Features
- Specifically designed for operations in scrap and recycling yards.
- Equipped NPK Booster system, which creates extreme crushing force and a faster cycle time, significantly enhancing demolition performance.
F = Mechanical Rotation
R = Hydraulic Rotation
D = Hydraulic Rotation + Mechanical Rotation
S = Hydraulic Rotation (1 way Rotation. Piping for the motor and drain is not required.)

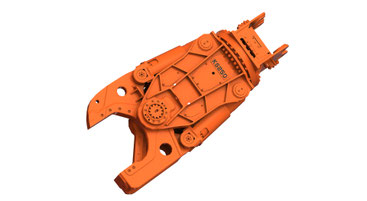

| KS250 | KS350 | ||||
| Rotation Type | - | F | D | S | D |
| Cutting Force (at Tip) | kN | 1020 | 1300 | ||
| Max/ Min Jaw Opening | mm | 600/0 | 700/0 | ||
| Preset Pressure of built -in Relief Valve | MPa | 28 | 28 | ||
| Setting Pressure | MPa | 30 | 30 | ||
| Oil Flow | L/min | 100 ~ 400 | 150 ~ 500 | ||
| Working Weight | kg | 2420 | 2440 | 2450 | 3500 |
| Recommended Carrier Weight | ton | 19 ~ 21 | 29 ~ 38 | ||
| KS470 | ||||
| Rotation Type | - | D | ||
| Cutting Force | kN | 1520 | ||
| Max/ Min Jaw Opening | mm | 800/0 | ||
| Preset Pressure of built -in Relief Valve | MPa | 28 | ||
| Setting Pressure | MPa | 30 | ||
| Oil Flow | L/min | 175 ~ 600 | ||
| Working Weight | kg | 4550 | ||
| Recommended Carrier Weight | ton | 39 ~ 48 | ||
